HU 100 A 5XL
Product line up - Machine specifications - HU Series - HU 100 Series - Similar products - Comparison
Characteristics
| Ball Screw |
 |
| X |
Model variations
| 6060 |
 |
| Category | Item | Specification |
| Workpiece | Workpiece diameter[mm] | Ø2000 |
| Workpiece length[mm] | 1200 | |
| Travels | Stroke X[mm] | 2000 |
| Stroke Y[mm] | 1500 | |
| Stroke Z[mm] | 1400 | |
| Stroke A[deg] | 100 | |
| Stroke B[deg] | 360 | |
| Rapid traverse(X)[m/min] | 12 | |
| Rapid traverse(Y)[m/min] | 12 | |
| Rapid traverse(Z)[m/min] | 12 | |
| Rapid traverse(A)[r/min] | 4 | |
| Rapid traverse(B)[r/min] | 6 | |
| Table | Workpiece allowable Load[kg] | 3000 |
| Table Size[mm] | 1000×1000 | |
| Category | Origin | Japan |
Milling spindle 1(H1)
| Spindle name | Taper | 7:24 taper No. 50 | Rotational speed[rpm] | 4500 12000 | Power[kW] | Torque[Nm] | Transmission |
Tool Magazine 1
| Tool holder taper | 7:24 taper No. 50 | No. of tool storage[ea] | 60 | Tool diameter[mm] | Tool length[mm] | Tool weight[kg] | Tool change time(TTT)[s] | Tool change time(CTC)[s] |
*A: Max. tool diameter (with adjacent tools)*B: Max. tool diameter (without adjacent tools), C: Max. tool diameter (single point)

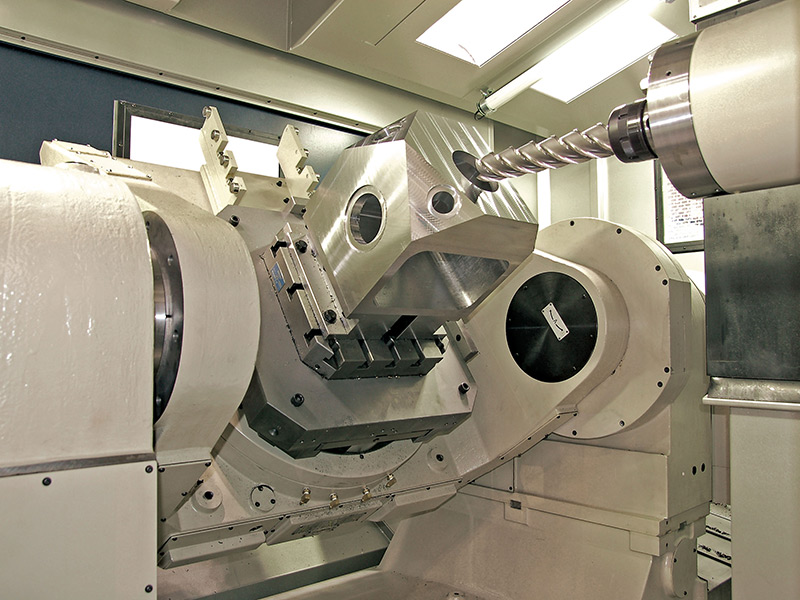

Photo gallery
Not responsible for misprints or data errors. Actual product appearance may differ.
